OPTIMIZING NETWORK INFRASTRUCTURE & SECURITY

Analyzing and Implementing a Hierarchical Network Architecture for MUG (Methodist University Ghana)

Forging a resilient, high-performance digital backbone for MUG through strategic network redesign and robust security enhancements.

Explore Our Work
Network Infrastructure Cables and Ports

Project Vision & Scope

This capstone project strategically overhauls Methodist University Ghana's (MUG) network infrastructure.

Our vision is to establish a high-performance, secure, and scalable digital environment that effectively supports MUG's academic and administrative excellence.

The scope involved a comprehensive analysis of the existing network, guided by the OSI model, leading to the design and proposed implementation of a robust hierarchical architecture.

The challenges we encountered and our layered solutions are outlined in the subsequent sections.

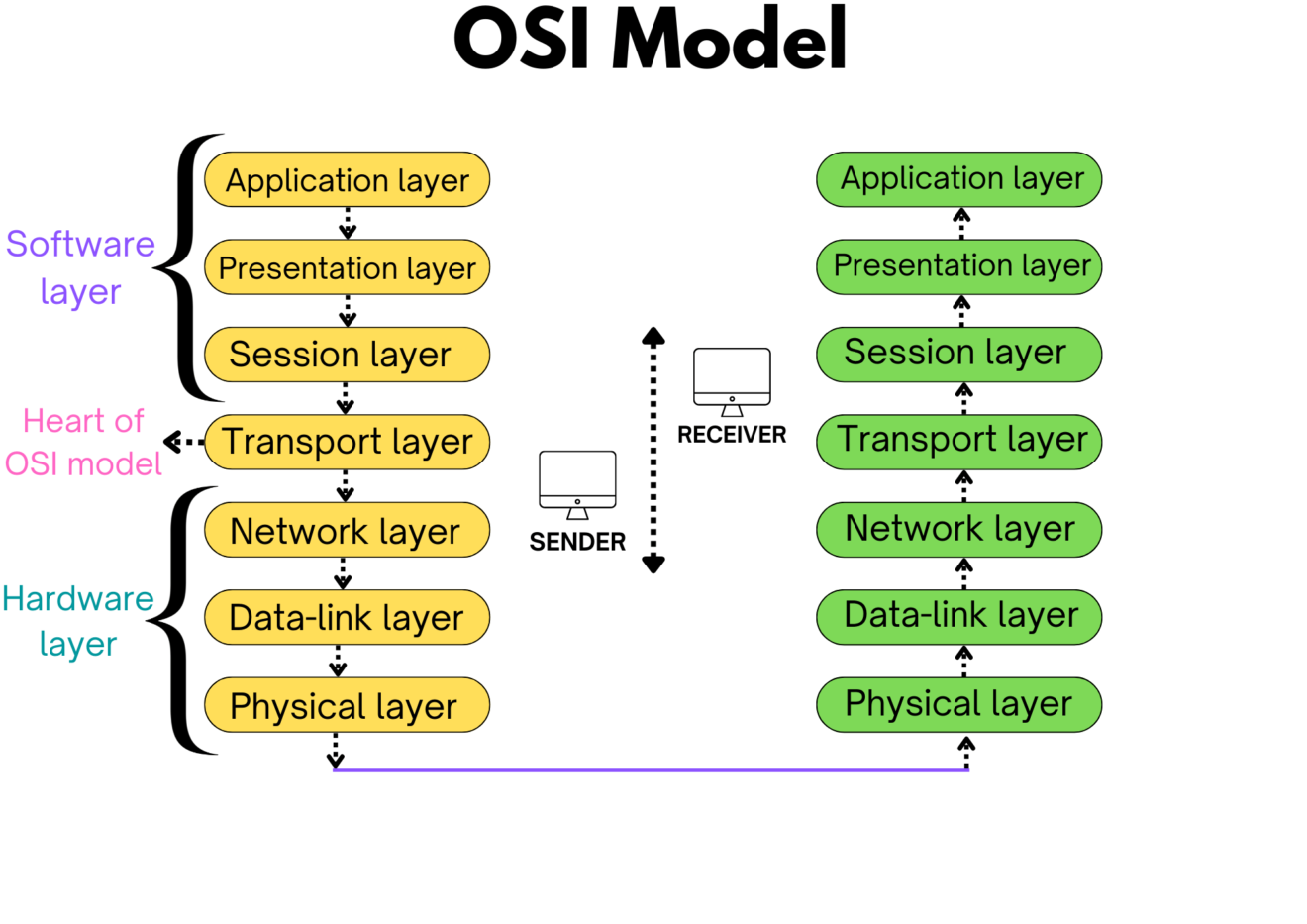

High-level Network Diagram or OSI Model representation

Navigating MUG's Network Hurdles

Suboptimal Wireless

Incorrect AP placement and environmental blocks leading to poor Wi-Fi coverage.

Security Gaps

Open wireless policies creating vulnerabilities and unauthorized access risks.

Flat Architecture

Single broadcast domain causing excessive ARP traffic, congestion, and instability.

IP Inefficiency

Oversized /19 subnet contributing to unnecessary broadcast and poor management.

The Implemented Hierarchical Solution

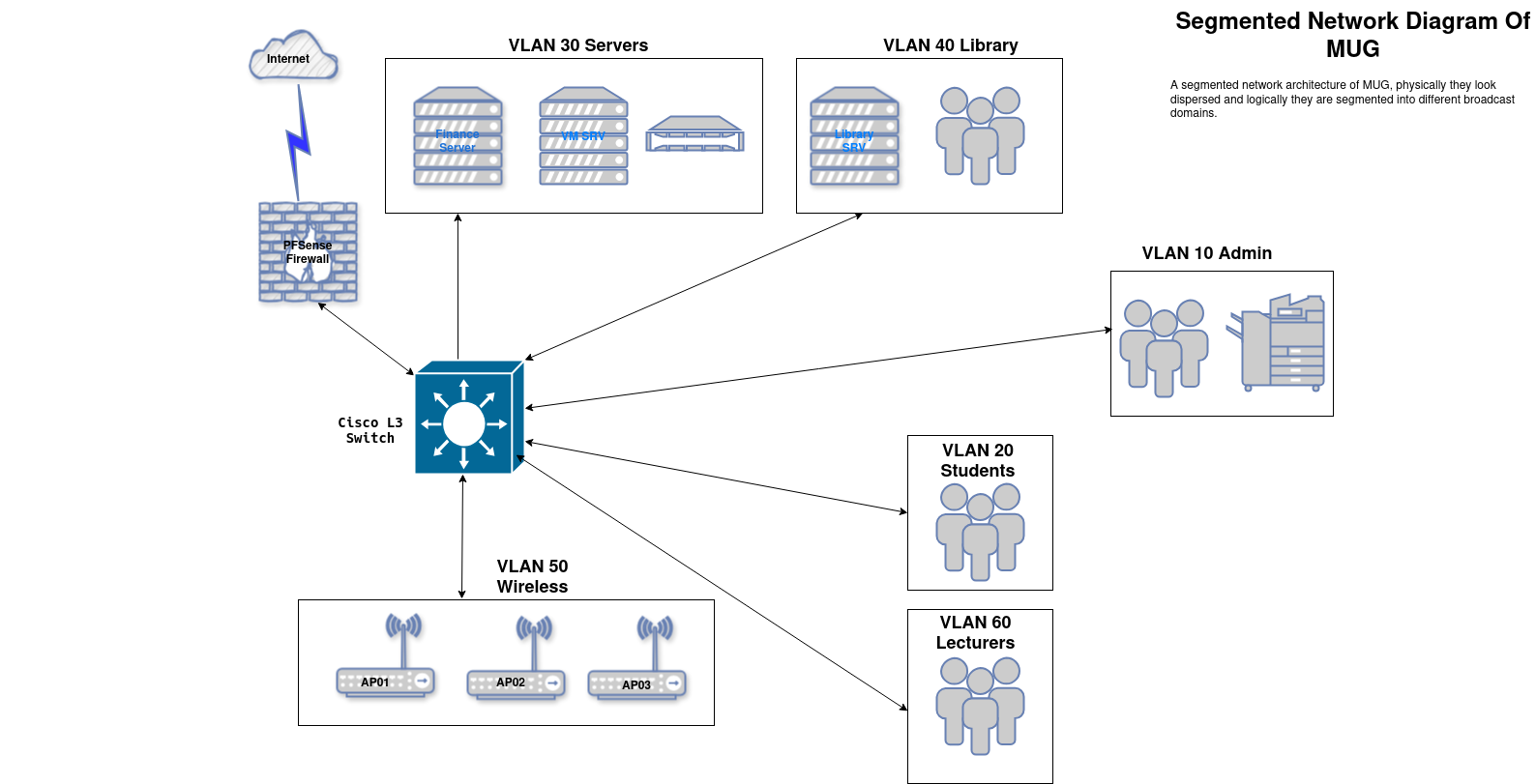

Proposed Hierarchical Network Architecture
  • Optimized AP Layout: Strategic placement for optimal signal and coverage.
  • VLAN Segmentation: Isolating traffic into Admin, Students, Servers, etc., reducing broadcast.
  • IP Redesign & OSPF: Efficient IP use, dynamic routing between VLANs.
  • RADIUS for AAA: Centralized authentication using FreeRADIUS & daloRADIUS.
  • Enhanced Security: SSL for RADIUS portal, groundwork for WPA3.

The Project Team

Tettey Michael Nii Ayi

Tettey Michael Nii Ayi

(BSSI/ED/218894)

Documentation & Research Lead

Ofori Daniel Perry Jnr

Ofori Daniel Perry Jnr

(BSSI/ED/210056)

Technical Lead

Igwebuike Solomon Jnr

Igwebuike Solomon Jnr

(BSSI/ED/221348)

Project Manager

Eshun Darlington Ebenezer

Eshun Darlington Ebenezer

(BSSI/ED/218704)

Agile Scrum & Q.A. Lead

Project Supervised by: Dr. R.O.Sarkodie

Project Documentation & Slides

Live Demonstration Preview

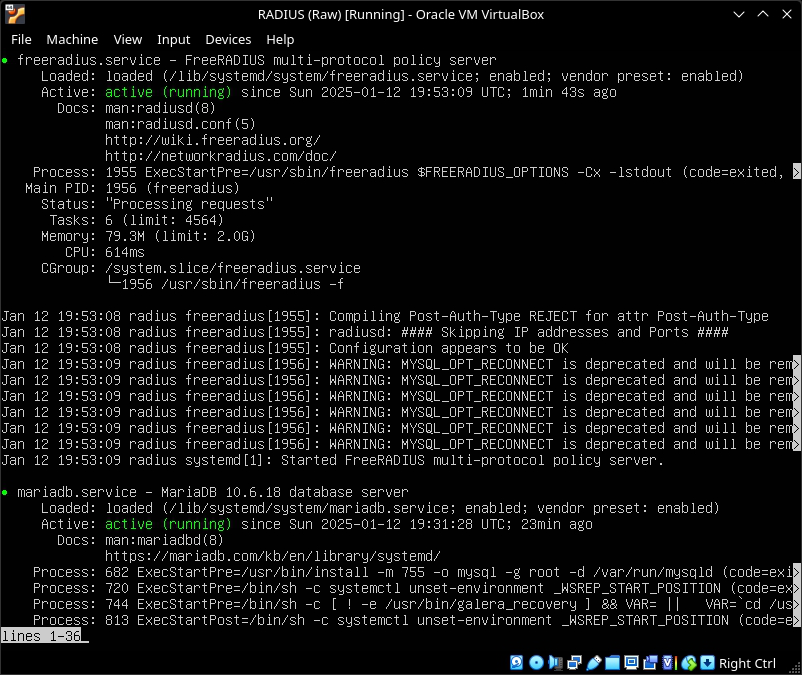

During the defense, a live Oracle VirtualBox demonstration will showcase the RADIUS server functionality, VLAN configurations, and implemented security measures.

VM Demonstration Preview

Connect & Contribute

We welcome your feedback and potential contributions. Reach out to discuss this project further.
